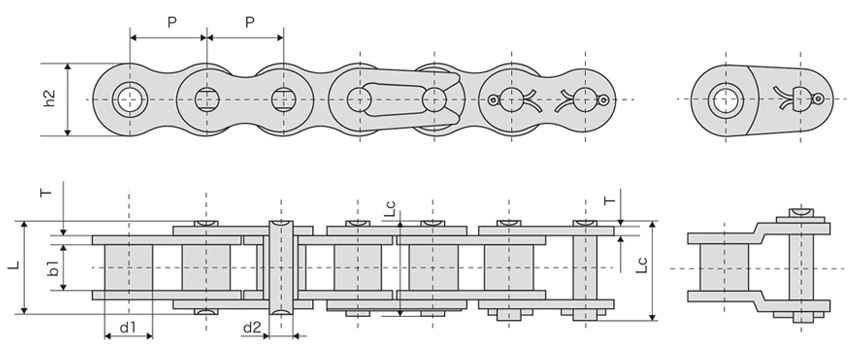

| 链号 | 链号 | 节距 | 滚子直径 | 内节内宽 | 销轴直径 | 销轴长度 | 内链板高度 | 链板厚度 | 极限拉伸载荷 | 平均拉伸载荷 | 每米长重 | |
| P | d1(max) | b1(min) | d2(max) | L(max) | Lc(max) | h2(max) | T(max) | Q(min) | Q0 | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| *04CSS-1 | *25SS | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 8.40 | 6.00 | 0.80 | 2.10 | 2.76 | 0.15 |
| *06CSS-1 | *35SS | 9.525 | 5.08 | 4.77 | 3.58 | 12.40 | 13.17 | 9.00 | 1.30 | 4.74 | 6.48 | 0.33 |
| 085SS-1 | 41SS | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.00 | 9.91 | 1.30 | 4.00 | 7.56 | 0.41 |
| 08ASS-1 | 40SS | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 8.46 | 10.50 | 0.62 |
| 10ASS-1 | 50SS | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 13.32 | 17.64 | 1.02 |
| 12ASS-1 | 60SS | 19.050 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 19.08 | 49.88 | 1.50 |
| 16ASS-1 | 80SS | 25.400 | 15.88 | 15.75 | 7.92 | 32.70 | 35.00 | 24.00 | 3.25 | 34.02 | 41.64 | 2.60 |
| 20ASS-1 | 100SS | 31.750 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 53.10 | 65.52 | 3.91 |
| 24ASS-1 | 120SS | 38.100 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 76.20 | 93.78 | 5.62 |
| 28ASS-1 | 140SS | 44.450 | 25.40 | 25.22 | 12.70 | 54.40 | 59.00 | 41.00 | 5.60 | 103.44 | 127.20 | 7.50 |
| 32ASS-1 | 160SS | 50.800 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | 136.08 | 167.34 | 10.10 |
| 36ASS-1 | 180SS | 57.150 | 35.71 | 35.48 | 17.46 | 72.80 | 78.60 | 53.60 | 7.20 | 168.12 | 205.08 | 13.456 |
| 40ASS-1 | 200SS | 63.500 | 39.68 | 37.85 | 19.85 | 80.30 | 87.20 | 60.00 | 8.00 | 212.28 | 258.96 | 16.15 |
| 48ASS-1 | 240SS | 76.200 | 47.63 | 47.35 | 23.81 | 95.50 | 103.00 | 72.39 | 9.50 | 306.18 | 373.50 | 23.20 |
